Azure#
To configure the target cloud, open the ACP. In the right part of the page, above the client list, click the Manage Clouds button. The page displays information about the target clouds. Use the available commands in the Actions menu to configure clouds. To add a cloud, click Add below the table with the list of target clouds.
Select the Azure cloud type.

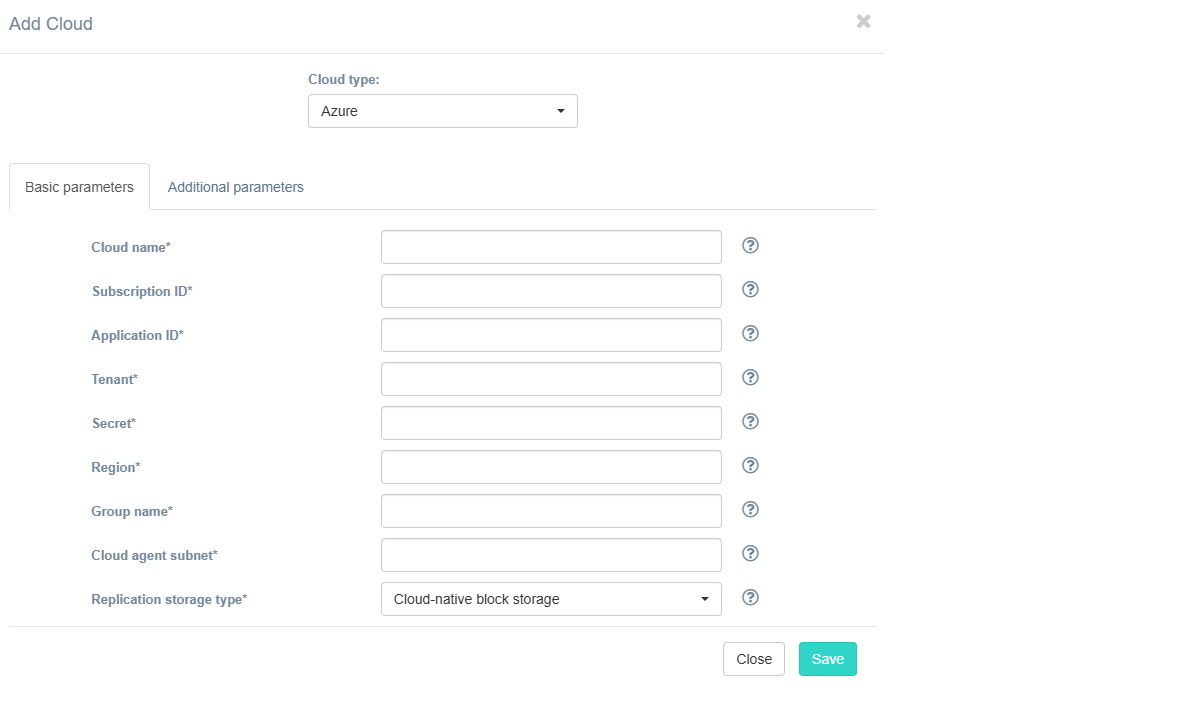

Fill in the fields on the Basic Parameters tab by providing information about the cloud configuration. Click "?" for field tips. Fields description:
| Field | Description | Example |
|---|---|---|
| Cloud name | The name of the cloud which will be shown in UI. The name must be unique. | test_cloud |
| Subscription ID | ID of Azure subscription | f47b3e31-7c86-436b-baa1-a44938198b8e |
| Application ID | Application (client) ID of the registered application in Azure. See how to create this ID and secret | 405b2a3f-6df5-4724-9a2b-e8061f560c89 |
| Tenant | Directory (tenant) ID (can be found in Azure Active Directory/Properties) | 1338dcc9-f703-4c56-b9d5-a6fe5493f757 |
| Secret | Secret string that the application uses to prove its identity when requesting a token. Can also be referred to as an application password. | BWP1qzzr… |
| Region | Azure region name | westeurope |
| Group name | Target resource group name | Acura |
| Cloud agent subnet | Subnet in format “<network_name>/<subnet_name>” | Acura-vnet/default |
| Replication storage type | Choose storage type to use for replicated data. Migration and recovery from cloud-native block storage is fastest, but the other storage types can be cheaper. | Cloud-native block storage |
If necessary, add information about additional parameters. To do this, go to the Additional Parameters tab, select the required parameter, and enter its value. The tooltip system works similarly to the Basic Parameters tab. Description of additional parameters:
| Field | Description |
|---|---|
| Availability zone | Availability zone where all resources will be created |
| Cloud agent flavor | Flavor to use for the cloud agent instances |
| Cloud agent flavor requirements | Requirements for cloud agent flavor in JSON format, for example: {"cpu": "value", "ram": "value", "hdd": "value"} |
| Cloud agent image ID | Id of the cloud agent image from the target cloud |
| Cloud agent image reference | Reference to image for cloud agent in JSON format, for example: {"publisher": "value", "offer": "value", "sku": "value", "version": "value"} |
| Cloud agent marketplace plan | Name of the marketplace plan used for the cloud agent |
| Cloud site replications launch timeout (minutes) | Timeout for a launch of replications during Cloud Site creation (in minutes) |
| Cloud site replications timeout (minutes) | Timeout for a replications during Cloud Site creation (in minutes) |
| Cloud site timeout | Cloud site creation timeout in minutes |
| Replicated volume type | Default volume type used to create volumes for replicated VMs |
| Use public IP for cloud agent | Cloud Agent will be created with public IP and Acura will use public IP to connect to Cloud Agent |
Click the Save button. The solution checks the entered data for correctness. If an error occurs, a notification appears.
